Reading Time: 13 minutesHello people,
All right with you ??
In this post, which will be the blog's 200 number, I would like to talk about two subjects that I particularly like about SQL Server, which is the creation of .NET (CLR) routines within the SQL Server database and performance tuning.
Coincidental or not, my post number 100 was the Introduction to SQL Common Language Runtime (CLR) in SQL Server, which was my first blog post about the CLR.
My intention in this post, is to demonstrate the performance gain that can be obtained by using Scalar functions of the CLR instead of the Scalar function written in T-SQL (UDF - User Defined Function). In the tests carried out, the vast majority of the T-SQL functions that were migrated to CLR functions have a great performance gain simply due to the optimizations of the Microsoft .NET Framework compared to the SQL Server engine.
In many situations, we see that indexes are created correctly, statistics updated, and without having to rewrite the query, you can achieve a great performance gain by simply changing the programming language of scalar functions.
Will CLR function always be better?
Some may have some questions about the performance of scalar functions of the CLR, which I will clarify:
- Will the scalar functions of the CLR always perform better than functions?
Certainly not! I've done a lot of tests comparing different functions, for different purposes and from my experience, the scalar functions written in C # on CLR do have a better performance, but I've seen some cases where even optimizing the code to the maximum, the function T-SQL performs better.
- What if we compare the performance of native functions with the CLR functions?
Functions, in general, always degrade performance if a database query. However, as much as the CLR scalar functions are quite performative, the native SQL Server functions (eg CONVERT, CAST, DATEADD, etc.) generally perform better when compared.
Comparing performance in practice
After making this introduction on the subject, it's time to really demonstrate what was said here. And nothing better than performing performance tests in practice to convince you that the CLR can in many cases provide a great performance gain in your SQL Server queries.
To generate the mass of test data, I used this script:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 | IF (OBJECT_ID('dirceuresende.dbo.Teste_Performance') IS NOT NULL) DROP TABLE dirceuresende.dbo.Teste_Performance CREATE TABLE dirceuresende.dbo.Teste_Performance ( Id INT IDENTITY(1, 1), Nome VARCHAR(200), Numero INT, [Data] DATETIME, Observacao VARCHAR(MAX), CPF VARCHAR(11) ) INSERT INTO dirceuresende.dbo.Teste_Performance ( Nome, Numero, [Data], Observacao, CPF ) SELECT CAST(NEWID() AS VARCHAR(50)), dbo.fncRand(99999999), DATEADD(SECOND, (CAST(RAND() * 31536000 AS INT)), '2017-01-01') AS Dt_Venda, CAST(NEWID() AS VARCHAR(50)) + ';' + CAST(NEWID() AS VARCHAR(50)) + ';' + CAST(NEWID() AS VARCHAR(50)), RIGHT(REPLICATE('0', 11) + CAST(dbo.fncRand(99999999999) AS VARCHAR(11)), 11) AS CPF DECLARE @Contador INT = 1, @Total INT = 20 WHILE(@Contador <= @Total) BEGIN INSERT INTO dirceuresende.dbo.Teste_Performance ( Nome, Numero, [Data], Observacao, CPF ) SELECT CAST(NEWID() AS VARCHAR(50)), dbo.fncRand(99999999), DATEADD(SECOND, (CAST(RAND() * 31536000 AS INT)), '2017-01-01') AS Dt_Venda, CAST(NEWID() AS VARCHAR(50)) + ';' + CAST(NEWID() AS VARCHAR(50)) + ';' + CAST(NEWID() AS VARCHAR(50)), RIGHT(REPLICATE('0', 11) + CAST(dbo.fncRand(99999999999) AS VARCHAR(11)), 11) AS CPF FROM dirceuresende.dbo.Teste_Performance SET @Contador += 1 END |
The source code for the fncRand () function, as well as the explanation of why I use this function instead of RAND (), you can find in the post. SQL Server - Msg 443 Invalid use of a side-effecting operator 'rand' within a function.
fncFirstDayMes
View content T-SQL Source Code: | CREATE FUNCTION [dbo].[fncPrimeiroDiaMes](@Dt_Referencia DATETIME) RETURNS DATETIME AS BEGIN RETURN DATEADD(DAY,-(DAY(@Dt_Referencia)-1), CAST(FLOOR(CAST(@Dt_Referencia AS FLOAT)) AS DATETIME)) END |
CLR Source Code:
| using System; using System.Data.SqlTypes; public partial class UserDefinedFunctions { [Microsoft.SqlServer.Server.SqlFunction] public static SqlDateTime fncPrimeiro_Dia_Mes(SqlDateTime Dt_Referencia) { if (Dt_Referencia.IsNull) return SqlDateTime.Null; var data = Dt_Referencia.Value; return new DateTime(data.Year, data.Month, 1); } } |
Output:

SELECT Performance Comparison

WHERE Performance Comparison

fncLastDayMes
View content T-SQL Source Code: | create function [dbo].[fncUltimoDiaMes](@Dt_Referencia datetime) RETURNS datetime as begin return dateadd(day,-1,dateadd(month,+1,DATEADD(DAY,-(DAY(@Dt_Referencia)-1), CAST(FLOOR(CAST(@Dt_Referencia AS FLOAT)) AS DATETIME)))) end |
CLR Source Code:
| using System; public partial class UserDefinedFunctions { [Microsoft.SqlServer.Server.SqlFunction] public static DateTime fncUltimo_Dia_Mes(DateTime data) { return new DateTime(data.Year, data.Month, DateTime.DaysInMonth(data.Year, data.Month)); } } |

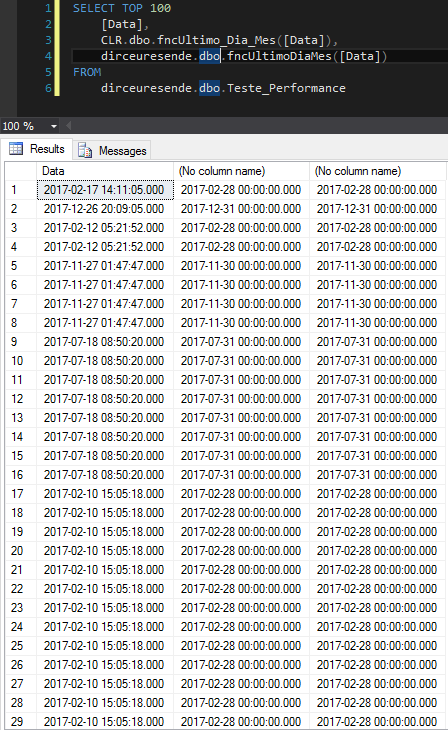

Output:

SELECT Performance Comparison

WHERE Performance Comparison

fncSplit
View content T-SQL Source Code: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 | CREATE FUNCTION [dbo].[fncSplit] ( @String varchar(8000), @Separador varchar(8000), @PosBusca int ) RETURNS varchar(8000) AS BEGIN DECLARE @Index int, @Max int, @Retorno varchar(8000) DECLARE @Partes as TABLE ( Id_Parte int identity(1,1), Texto varchar(8000) ) SET @Index = charIndex(@Separador,@String) WHILE (@Index > 0) BEGIN INSERT INTO @Partes SELECT SubString(@String,1,@Index-1) SET @String = Rtrim(Ltrim(SubString(@String,@Index+Len(@Separador),Len(@String)))) SET @Index = charIndex(@Separador,@String) END IF (@String != '') INSERT INTO @Partes SELECT @String SELECT @Max = Count(*) FROM @Partes IF (@PosBusca = 0) SET @Retorno = Cast(@Max as varchar(5)) IF (@PosBusca < 0) SET @PosBusca = @Max + 1 + @PosBusca IF (@PosBusca > 0) SELECT @Retorno = Texto FROM @Partes WHERE Id_Parte = @PosBusca RETURN Rtrim(Ltrim(@Retorno)) END |
CLR Source Code:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 | using System; using System.Data.SqlTypes; public partial class UserDefinedFunctions { [Microsoft.SqlServer.Server.SqlFunction] public static SqlString fncSplit(SqlString Ds_Palavra, SqlString Ds_Delimitador, SqlInt32 Qt_Indice) { if (Ds_Palavra.IsNull || Qt_Indice.IsNull) return SqlString.Null; if (Ds_Delimitador.IsNull) return Ds_Palavra.Value; var indice = (Qt_Indice.Value == 0) ? 1 : Qt_Indice.Value; var palavra = Ds_Palavra.Value.Split(Ds_Delimitador.Value.ToCharArray()); if (Qt_Indice.Value == 0) return palavra.Length.ToString(); if (palavra.Length < Qt_Indice.Value) return SqlString.Null; return indice > 0 ? palavra[indice - 1] : palavra[palavra.Length - Math.Abs(indice)]; } } |
Output:

SELECT Performance Comparison
Notice that, after waiting 5 mins, I ended up canceling and starting the tests again, but with only 10.000 records for the T-SQL function, compared to the CLR function running on 100.000 records. But even though the CLR function is running 10x more, see what happened in the results…

WHERE Performance Comparison

fncBase64_Encode
View content T-SQL Source Code: | CREATE FUNCTION [dbo].[fncBase64_Encode] ( @string VARCHAR(MAX) ) RETURNS VARCHAR(MAX) AS BEGIN DECLARE @source VARBINARY(MAX), @encoded VARCHAR(MAX) set @source = convert(varbinary(max), @string) SET @encoded = CAST('' AS XML).value('xs:base64Binary(sql:variable("@source"))', 'varchar(max)') RETURN @encoded END |
CLR Source Code:
| using System; using System.Data.SqlTypes; using System.Text; public partial class UserDefinedFunctions { [Microsoft.SqlServer.Server.SqlFunction] public static SqlString fncBase64_Encode(SqlString Ds_Texto) { return Ds_Texto.IsNull ? null : Convert.ToBase64String(Encoding.UTF8.GetBytes(Ds_Texto.Value)); } } |

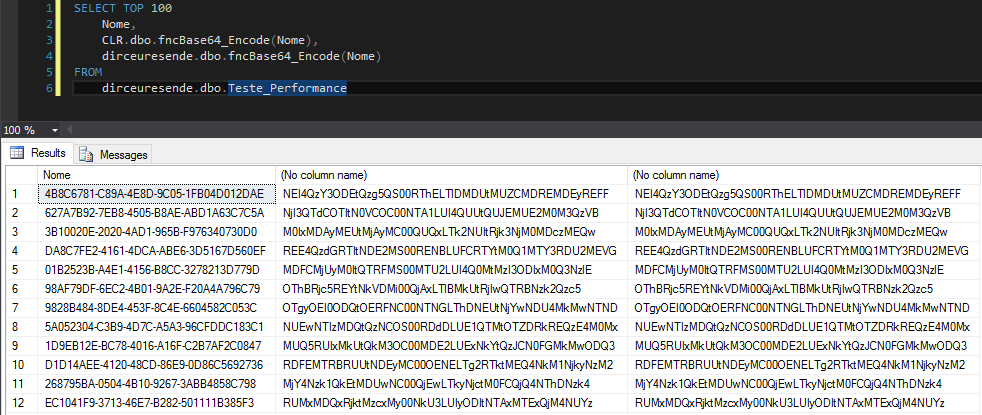

Output:

SELECT Performance Comparison

fncBase64_Decode
View content T-SQL Source Code: | CREATE FUNCTION [dbo].[fncBase64_Decode] ( @string VARCHAR(MAX) ) RETURNS VARCHAR(MAX) AS BEGIN DECLARE @decoded VARCHAR(MAX) SET @decoded = CAST('' AS XML).value('xs:base64Binary(sql:variable("@string"))', 'varbinary(max)') RETURN convert(varchar(max), @decoded) END |
CLR Source Code:
| using System; using System.Data.SqlTypes; using System.Text; public partial class UserDefinedFunctions { [Microsoft.SqlServer.Server.SqlFunction] public static SqlString fncBase64_Decode(SqlString Ds_Texto) { return Ds_Texto.IsNull ? null : Encoding.UTF8.GetString(Convert.FromBase64String(Ds_Texto.Value)); } } |
Output:

SELECT Performance Comparison

fncValida_CPF
View content T-SQL Source Code: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 | CREATE FUNCTION [dbo].[fncValida_CPF](@Nr_Documento [varchar](11)) RETURNS [bit] AS BEGIN IF (ISNUMERIC(@Nr_Documento) = 0) RETURN 0 DECLARE @Contador_1 INT, @Contador_2 INT, @Digito_1 INT, @Digito_2 INT, @Nr_Documento_Aux VARCHAR(11) SET @Nr_Documento_Aux = LTRIM(RTRIM(@Nr_Documento)) SET @Digito_1 = 0 IF LEN(@Nr_Documento_Aux) <> 11 RETURN 0 ELSE BEGIN -- Cálculo do segundo dígito SET @Nr_Documento_Aux = SUBSTRING(@Nr_Documento_Aux, 1, 9) SET @Contador_1 = 2 WHILE @Contador_1 <= 10 BEGIN SET @Digito_1 = @Digito_1 + ( @Contador_1 * CAST(SUBSTRING(@Nr_Documento_Aux, 11 - @Contador_1, 1) AS INT) ) SET @Contador_1 = @Contador_1 + 1 END SET @Digito_1 = @Digito_1 - ( @Digito_1 / 11 ) * 11 IF @Digito_1 <= 1 SET @Digito_1 = 0 ELSE SET @Digito_1 = 11 - @Digito_1 SET @Nr_Documento_Aux = @Nr_Documento_Aux + CAST(@Digito_1 AS VARCHAR(1)) IF @Nr_Documento_Aux <> SUBSTRING(@Nr_Documento, 1, 10) RETURN 0 ELSE BEGIN -- Cálculo do segundo dígito SET @Digito_2 = 0 SET @Contador_2 = 2 WHILE (@Contador_2 <= 11) BEGIN SET @Digito_2 = @Digito_2 + ( @Contador_2 * CAST(SUBSTRING(@Nr_Documento_Aux, 12 - @Contador_2, 1) AS INT) ) SET @Contador_2 = @Contador_2 + 1 END SET @Digito_2 = @Digito_2 - ( @Digito_2 / 11 ) * 11 IF @Digito_2 < 2 SET @Digito_2 = 0 ELSE SET @Digito_2 = 11 - @Digito_2 SET @Nr_Documento_Aux = @Nr_Documento_Aux + CAST(@Digito_2 AS VARCHAR(1)) IF @Nr_Documento_Aux <> @Nr_Documento RETURN 0 END END RETURN 1 END |
CLR Source Code:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 | using System.Data.SqlTypes; public partial class UserDefinedFunctions { [Microsoft.SqlServer.Server.SqlFunction] public static SqlBoolean fncValida_CPF(SqlString Ds_CPF) { if (Ds_CPF.IsNull) return false; var valor = Ds_CPF.Value.Replace(".", "").Replace("-", "").Replace(" ", ""); if (valor.Length != 11) return false; long resultadoConversaoInt; if (!long.TryParse(valor, out resultadoConversaoInt)) return false; var igual = true; for (var i = 1; i < 11 && igual; i++) if (valor[i] != valor[0]) igual = false; if (igual || valor == "12345678909") return false; var numeros = new int[11]; for (var i = 0; i < 11; i++) numeros[i] = int.Parse(valor[i].ToString()); var soma = 0; for (var i = 0; i < 9; i++) soma += (10 - i) * numeros[i]; var resultado = soma % 11; if (resultado == 1 || resultado == 0) { if (numeros[9] != 0) return false; } else if (numeros[9] != 11 - resultado) return false; soma = 0; for (var i = 0; i < 10; i++) soma += (11 - i) * numeros[i]; resultado = soma % 11; if (resultado == 1 || resultado == 0) { if (numeros[10] != 0) return false; } else if (numeros[10] != 11 - resultado) return false; return true; } } |
Output:

SELECT Performance Comparison

fncRetrieveNumbers
View content T-SQL Source Code: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 | CREATE function [dbo].[fncRecupera_Numeros](@str varchar(500)) returns varchar(500) begin declare @startingIndex int set @startingIndex=0 while 1=1 begin set @startingIndex= patindex('%[^0-9]%',@str) if @startingIndex <> 0 begin set @str = replace(@str,substring(@str,@startingIndex,1),'') end else break; end return NULLIF(@str, '') end |
CLR Source Code:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 | using System.Data.SqlTypes; public partial class UserDefinedFunctions { [Microsoft.SqlServer.Server.SqlFunction] public static SqlString fncRecupera_Numeros(SqlString Ds_Texto) { if (Ds_Texto.IsNull) return SqlString.Null; var retorno = ""; var palavra = Ds_Texto.Value; var len = palavra.Length; for (var i = 0; i < len; ++i) { var letra = palavra[i]; if (letra >= '0' && letra <= '9') retorno += letra; } return string.IsNullOrEmpty(retorno) ? SqlString.Null : retorno; } }; |
Output:

SELECT Performance Comparison

fncMes
View content T-SQL Source Code: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 | -- @Fl_Tipo define como é o tipo de formatação -- 1: Janeiro Fevereiro Marco Abril... -- 2: JANEIRO FEVEVEIRO MARCO ABRIL -- 3: Jan Fev Mar Abr -- 4: JAN FEV MAR ABR -- 5: January, February ... (cubo) CREATE FUNCTION [dbo].[fncMes] (@Dt_Referencia DATETIME, @Fl_Tipo TINYINT, @Fl_Incluir_Ano BIT = 0, @Fl_Incluir_Dia BIT = 0) RETURNS VARCHAR(30) AS BEGIN DECLARE @Mes TINYINT SET @Mes = DATEPART(MONTH, @Dt_Referencia) DECLARE @Ds_Mes as varchar(30) SET @Ds_Mes = CASE WHEN @Mes = 1 THEN 'Janeiro' WHEN @Mes = 2 THEN 'Fevereiro' WHEN @Mes = 3 THEN 'Março' WHEN @Mes = 4 THEN 'Abril' WHEN @Mes = 5 THEN 'Maio' WHEN @Mes = 6 THEN 'Junho' WHEN @Mes = 7 THEN 'Julho' WHEN @Mes = 8 THEN 'Agosto' WHEN @Mes = 9 THEN 'Setembro' WHEN @Mes = 10 THEN 'Outubro' WHEN @Mes = 11 THEN 'Novembro' WHEN @Mes = 12 THEN 'Dezembro' ELSE NULL END IF (@Fl_Tipo IN (3,4)) SET @Ds_Mes = SubString(@Ds_Mes,1,3) IF (@Fl_Tipo IN (2,4)) SET @Ds_Mes = Upper(@Ds_Mes) IF (@Fl_Tipo = 5) BEGIN DECLARE @Date datetime SET @Date = '2001'+Right('0'+Cast(@Mes as varchar(2)),2)+'01' SET @Ds_Mes = DateName(Month,@Date) END IF (@Fl_Incluir_Ano = 1) SET @Ds_Mes = @Ds_Mes + ' ' + CAST(DATEPART(YEAR, @Dt_Referencia) AS VARCHAR(4)) IF (@Fl_Incluir_Dia = 1) SET @Ds_Mes = CAST(DATEPART(DAY, @Dt_Referencia) AS VARCHAR(4)) + '/' + @Ds_Mes RETURN @Ds_Mes END |
CLR Source Code:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 | using System.Data.SqlTypes; public partial class UserDefinedFunctions { [Microsoft.SqlServer.Server.SqlFunction] public static SqlString fncMes(SqlDateTime Dt_Referencia, SqlInt32 Fl_Tipo, SqlBoolean Fl_Incluir_Ano, SqlBoolean Fl_Incluir_Dia) { #region Validações if (Dt_Referencia.IsNull) return null; if (Fl_Tipo.IsNull) Fl_Tipo = 1; if (Fl_Incluir_Ano.IsNull) Fl_Incluir_Ano = false; if (Fl_Incluir_Dia.IsNull) Fl_Incluir_Dia = false; #endregion var mes = Dt_Referencia.Value.Month; string retorno; if (Fl_Tipo == 5) { switch (mes) { case 1: retorno = "January"; break; case 2: retorno = "February"; break; case 3: retorno = "March"; break; case 4: retorno = "April"; break; case 5: retorno = "May"; break; case 6: retorno = "June"; break; case 7: retorno = "July"; break; case 8: retorno = "August"; break; case 9: retorno = "September"; break; case 10: retorno = "October"; break; case 11: retorno = "November"; break; case 12: retorno = "December"; break; default: retorno = null; break; } } else { switch (mes) { case 1: retorno = "Janeiro"; break; case 2: retorno = "Fevereiro"; break; case 3: retorno = "Março"; break; case 4: retorno = "Abril"; break; case 5: retorno = "Maio"; break; case 6: retorno = "Junho"; break; case 7: retorno = "Julho"; break; case 8: retorno = "Agosto"; break; case 9: retorno = "Setembro"; break; case 10: retorno = "Outubro"; break; case 11: retorno = "Novembro"; break; case 12: retorno = "Dezembro"; break; default: retorno = null; break; } if (Fl_Tipo == 3 || Fl_Tipo == 4) retorno = retorno?.Substring(0, 3); if (Fl_Tipo == 2 || Fl_Tipo == 4) retorno = retorno?.ToUpper(); } if (Fl_Incluir_Ano.Value) retorno += " " + Dt_Referencia.Value.Year.ToString("0000"); if (Fl_Incluir_Dia.Value) retorno = Dt_Referencia.Value.Day.ToString("00") + "/" + retorno; return retorno; } } |
Output:

SELECT Performance Comparison

fncConverte_In_Hours
View content T-SQL Source Code: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 | CREATE FUNCTION [dbo].[fncConverte_Em_Horas] (@Qt_Tempo BIGINT, @Tp_Tempo VARCHAR(10)) RETURNS VARCHAR(MAX) BEGIN DECLARE @ResultadoNegativo TINYINT = 0 IF (@Qt_Tempo < 0) BEGIN SET @ResultadoNegativo = 1 SET @Qt_Tempo = @Qt_Tempo * (-1) END DECLARE @Diferenca BIGINT = @Qt_Tempo, @Segundos BIGINT = 0, @Minutos BIGINT = 0, @Horas BIGINT = 0 IF(@Tp_Tempo IN('ss','second')) BEGIN SET @Horas = @Diferenca / 3600 SET @Diferenca = @Diferenca - (@Horas * 3600) SET @Minutos = @Diferenca / 60 SET @Diferenca = @Diferenca - (@Minutos * 60) SET @Segundos = @Diferenca END IF(@Tp_Tempo IN('mm','minute')) BEGIN SET @Horas = @Diferenca / 60 SET @Diferenca = @Diferenca - (@Horas * 60) SET @Minutos = @Diferenca SET @Segundos = 0 END IF(@Tp_Tempo IN('hh','hour')) BEGIN SET @Horas = @Diferenca SET @Minutos = 0 SET @Segundos = 0 END RETURN (CASE WHEN @ResultadoNegativo = 1 THEN '-' ELSE '' END) + (CASE WHEN @Horas <= 9 THEN RIGHT('00' + CAST(@Horas AS VARCHAR(1)), 2) ELSE CAST(@Horas AS VARCHAR(MAX)) END + ':' + RIGHT('00' + CAST(@Minutos AS VARCHAR(2)), 2) + ':' + RIGHT('00' + CAST(@Segundos AS VARCHAR(2)), 2)) END |
CLR Source Code:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 | using System.Data.SqlTypes; public partial class UserDefinedFunctions { [Microsoft.SqlServer.Server.SqlFunction] public static SqlString fncConverte_Em_Horas(SqlInt64 Qt_Tempo, SqlString Tp_Tempo) { if (Qt_Tempo.IsNull) return SqlString.Null; if (Tp_Tempo.IsNull) return SqlString.Null; var resultadoNegativo = false; var tempo = Qt_Tempo.Value; if (tempo < 0) { resultadoNegativo = true; tempo = tempo * -1; } var diferenca = tempo; long segundos = 0; long minutos = 0; long horas = 0; switch (Tp_Tempo.Value) { case "ss": case "second": horas = diferenca / 3600; diferenca -= (horas * 3600); |
