Speak guys !!
In this post I come to bring a solution to a problem that almost every day I see in Whatsapp and Telegram groups: Send the content of one or more tables or queries in the body of an email as HTML.
The procedure that we are going to use in this post to take the contents of the table and transform it to HTML I had already shared in the article How to export data from a SQL Server table to HTML, but I see that whenever I sent the article, people still had difficulty sending the email, so I decided to create this article to resolve this doubt once and for all.
If you don't know how to set up Database Mail to start sending emails via SQL Server or are having trouble sending simple emails, visit the article SQL Server - How to enable and configure Database mail to send and monitor database emails (sp_send_dbmail).
Using sp_send_dbmail itself and the @query parameter
Probably one of the most used ways to send the result of a table by e-mail is using the parameter @query from sp_send_dbmail.
Example:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 |
EXEC msdb.dbo.sp_send_dbmail @profile_name = 'ProfileEnvioEmail', -- sysname @subject = N'Teste', -- nvarchar(255) @body = N'Teste', -- nvarchar(max) @body_format = 'html', -- Parâmetros específicos do envio da query @query = N'select top 20 * from [dirceuresende].[dbo].[Clientes]', -- nvarchar(max) @query_result_header = 1, -- bit @exclude_query_output = 1, -- bit @query_result_width = 50, -- int @query_result_separator = '|' -- char(1) |

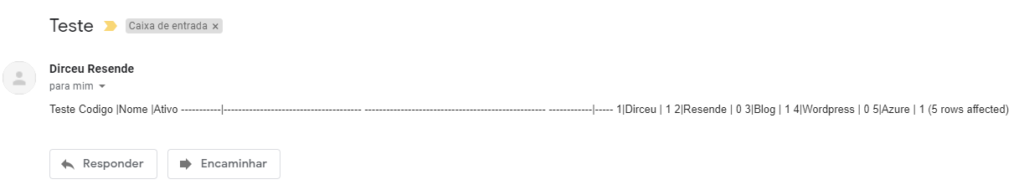

Result:
As you can see, although it is extremely simple to use, the result is very bad for data visualization.
Using sp_send_dbmail itself and the @attach_query_result_as_file parameter
I'll try sending this content as an attachment to see if it improves. Perhaps exporting to file, the output is a little better.
Example:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 |
EXEC msdb.dbo.sp_send_dbmail @profile_name = 'ProfileEnvioEmail', -- sysname @subject = N'Teste', -- nvarchar(255) @body = N'Teste', -- nvarchar(max) @body_format = 'html', -- Parâmetros específicos do envio da query @query = N'select top 20 * from [dirceuresende].[dbo].[Clientes]', -- nvarchar(max) @query_result_header = 1, -- bit @exclude_query_output = 1, -- bit @query_result_width = 50, -- int @query_result_separator = '|', -- char(1) -- Transformando em arquivo @attach_query_result_as_file = 1, @query_attachment_filename = 'arquivo.txt' |

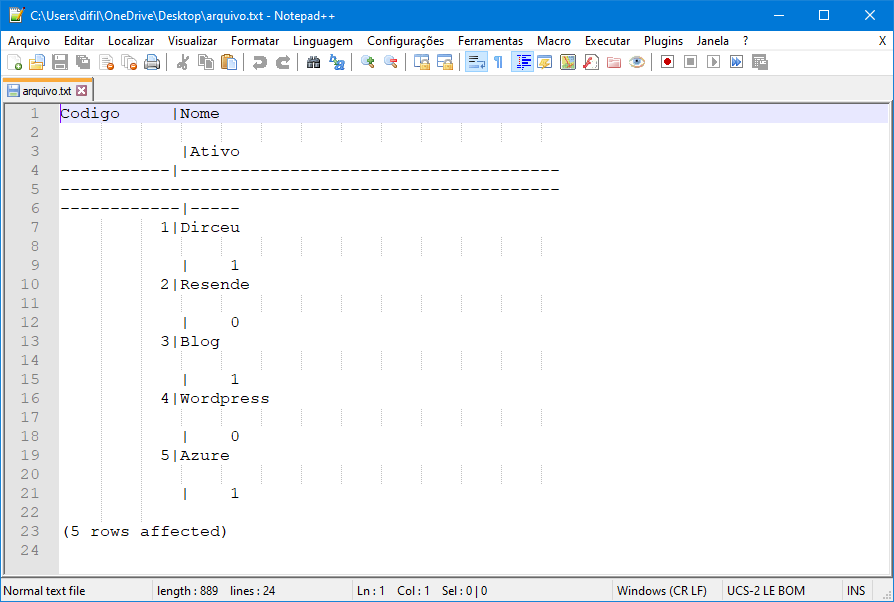

Result:
Another very bad result ... It didn't improve much.
Using XML to create a variable with the result in HTML
We will then use another approach to try to export the data from the table and send it in an email so that it is easy to view the data.
Example:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 |
-- Transforma o conteúdo da query em HTML DECLARE @HTML VARCHAR(MAX); SET @HTML = ' <table border="1"> <tr> <th>Codigo</th> <th>Nome</th> <th>Ativo?</th> </tr>' + CAST ( ( SELECT TOP 20 td = Codigo, '', td = Nome, '', td = Ativo FROM [dirceuresende].[dbo].[Clientes] FOR XML PATH('tr'), TYPE ) AS NVARCHAR(MAX) ) + ' </table>'; -- Envia o e-mail EXEC msdb.dbo.sp_send_dbmail @profile_name = 'ProfileEnvioEmail', -- sysname @subject = N'Teste', -- nvarchar(255) @body = @HTML, -- nvarchar(max) @body_format = 'html' |
Result:
Oops !! It's getting much better! Now I'm going to customize it a little bit just to show you that you can play with the message design.
Example:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 |
-- Transforma o conteúdo da query em HTML DECLARE @HTML VARCHAR(MAX); SET @HTML = ' <html> <head> <title>Titulo</title> <style type="text/css"> table { padding:0; border-spacing: 0; border-collapse: collapse; } thead { background: #00B050; border: 1px solid #ddd; } th { padding: 10px; font-weight: bold; border: 1px solid #000; color: #fff; } tr { padding: 0; } td { padding: 5px; border: 1px solid #cacaca; margin:0; text-align: center; } </style> </head> <h2>Lista de Usuários do Sistema</h2> Veja a lista dos usuários permitidos no sistema:<br/><br/> <table> <thead> <tr> <th>Codigo</th> <th>Nome</th> <th>Ativo?</th> </tr> </thead> <tbody>' + CAST ( ( SELECT TOP 20 td = Codigo, '', td = Nome, '', td = Ativo FROM [dirceuresende].[dbo].[Clientes] FOR XML PATH('tr'), TYPE ) AS NVARCHAR(MAX) ) + ' </tbody> </table> <br/><br/> Em caso de dúvidas, favor entrar em contato<br/><br/> Atenciosamente,<br/> <img src="https://www.sqlsaturday.com/images/speakers/6984-e5594a7e.jpg" /><br/> DBA'; -- Envia o e-mail EXEC msdb.dbo.sp_send_dbmail @profile_name = 'ProfileEnvioEmail', -- sysname @subject = N'Teste', -- nvarchar(255) @body = @HTML, -- nvarchar(max) @body_format = 'html' |

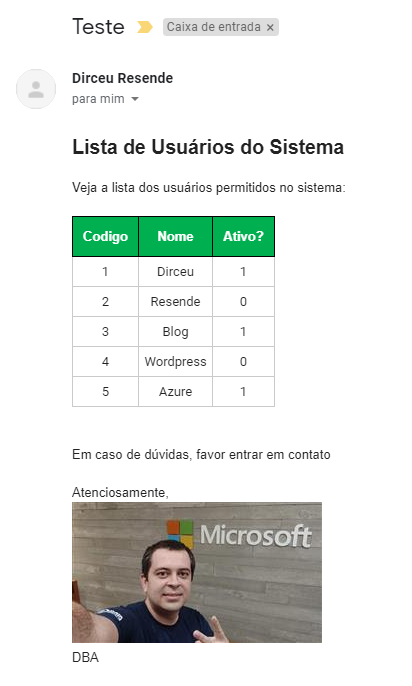

Result:
This email is getting really cool, huh ?? What if I want to send more than one table in the same email? Has as???
Example:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 |
-- Transforma o conteúdo da query em HTML DECLARE @HTML VARCHAR(MAX); SET @HTML = ' <html> <head> <title>Titulo</title> <style type="text/css"> table { padding:0; border-spacing: 0; border-collapse: collapse; } thead { background: #00B050; border: 1px solid #ddd; } th { padding: 10px; font-weight: bold; border: 1px solid #000; color: #fff; } tr { padding: 0; } td { padding: 5px; border: 1px solid #cacaca; margin:0; text-align: center; } </style> </head> <h2>Lista de Usuários do Sistema</h2> Veja a lista dos usuários permitidos no sistema:<br/><br/> <table> <thead> <tr> <th>Codigo</th> <th>Nome</th> <th>Ativo?</th> </tr> </thead> <tbody>' + CAST ( ( SELECT TOP 20 td = Codigo, '', td = Nome, '', td = Ativo FROM [dirceuresende].[dbo].[Clientes] FOR XML PATH('tr'), TYPE ) AS NVARCHAR(MAX) ) + ' </tbody> </table> <br/><br/> <h2>Lista de dos Objetos no Banco</h2> Veja a lista dos objetos que existem nesse banco:<br/><br/> <table> <thead> <tr> <th>Nome</th> <th>ID do Objeto</th> <th>Data de Criação</th> <th>Objeto de Sistema?</th> <th>Lock Escalation</th> <th>Durability</th> <th>Temporal Type</th> </tr> </thead> <tbody>' + CAST ( ( SELECT TOP 20 td = [name] , '', td = [object_id], '', td = CONVERT(VARCHAR(19), create_date, 103), '', td = (CASE WHEN is_ms_shipped = 1 THEN 'true' ELSE 'false' END), '', td = lock_escalation_desc, '', td = durability_desc, '', td = temporal_type_desc FROM dirceuresende.sys.tables FOR XML PATH('tr'), TYPE ) AS NVARCHAR(MAX) ) + ' </tbody> </table> <br/><br/> Em caso de dúvidas, favor entrar em contato<br/><br/> Atenciosamente,<br/> <img src="https://www.sqlsaturday.com/images/speakers/6984-e5594a7e.jpg" /><br/> DBA'; -- Envia o e-mail EXEC msdb.dbo.sp_send_dbmail @profile_name = 'ProfileEnvioEmail', -- sysname @subject = N'Teste', -- nvarchar(255) @body = @HTML, -- nvarchar(max) @body_format = 'html' |

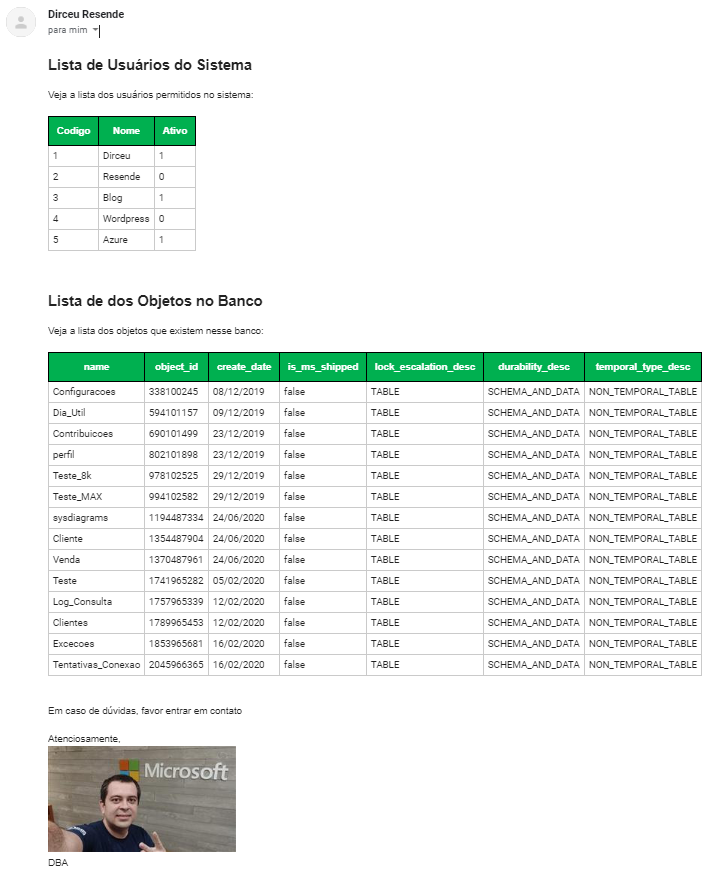

Result:
Easy Mode: stpExporta_Tabela_HTML_Output
Thinking of facilitating the sending of the contents of a table or query by email as HTML, I decided to create the Stored Procedure stpExporta_Tabela_HTML_Output to automate the transformation of the result of a table or query to HTML and be able to use this to create a file or send the HTML generated as the body of an email.
This procedure had already been shared in the article How to export data from a SQL Server table to HTML, but I decided to share it again here, with a focus on sending HTML email.
StpExporta_Tabela_HTML_Output code:
Click here to view the source code
Its use is very simple:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 |
-- Transforma o conteúdo da query em HTML DECLARE @HTML VARCHAR(MAX) EXEC dbo.stpExporta_Tabela_HTML_Output @Ds_Tabela = 'dirceuresende.dbo.Clientes', -- varchar(max) @Ds_Saida = @HTML OUTPUT -- varchar(max) -- Envia o e-mail EXEC msdb.dbo.sp_send_dbmail @profile_name = 'ProfileEnvioEmail', -- sysname @subject = N'Teste', -- nvarchar(255) @body = @HTML, -- nvarchar(max) @body_format = 'html' |

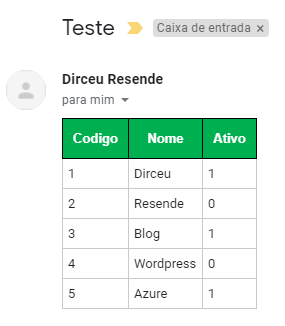

Result:
If I want to change the horizontal alignment, just use the @Ds_Alignment parameter:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 |
-- Transforma o conteúdo da query em HTML DECLARE @HTML VARCHAR(MAX) EXEC dbo.stpExporta_Tabela_HTML_Output @Ds_Tabela = 'dirceuresende.dbo.Clientes', -- varchar(max) @Ds_Saida = @HTML OUTPUT, -- varchar(max) @Ds_Alinhamento = 'center' -- parâmetros: left, center e right -- Envia o e-mail EXEC msdb.dbo.sp_send_dbmail @profile_name = 'ProfileEnvioEmail', -- sysname @subject = N'Teste', -- nvarchar(255) @body = @HTML, -- nvarchar(max) @body_format = 'html' |
Result:
If you want to use the result of a query instead of the content of an entire table, just use a temporary global table (## table), as the local temporary table (#table) will not work:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 |
-- Cria uma nova tabela com o resultado da query desejada IF (OBJECT_ID('tempdb..##Teste') IS NOT NULL) DROP TABLE ##Teste SELECT Codigo, Nome INTO ##Teste FROM dirceuresende.dbo.Clientes WHERE Codigo > 2 -- Transforma o conteúdo da query em HTML DECLARE @HTML VARCHAR(MAX) EXEC dbo.stpExporta_Tabela_HTML_Output @Ds_Tabela = '##Teste', -- varchar(max) @Ds_Saida = @HTML OUTPUT -- varchar(max) |
And to send the same email as the example using XML, it would look like this:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 |
DECLARE @HTML VARCHAR(MAX), @HTML1 VARCHAR(MAX), @HTML2 VARCHAR(MAX) -- Transforma o conteúdo da query em HTML EXEC dbo.stpExporta_Tabela_HTML_Output @Ds_Tabela = 'dirceuresende.dbo.Clientes', -- varchar(max) @Ds_Saida = @HTML1 OUTPUT -- varchar(max) IF (OBJECT_ID('tempdb..##Tabela2') IS NOT NULL) DROP TABLE ##Tabela2 SELECT TOP 20 [name], [object_id], CONVERT(VARCHAR(19), create_date, 103) AS create_date, (CASE WHEN is_ms_shipped = 1 THEN 'true' ELSE 'false' END) AS is_ms_shipped, lock_escalation_desc, durability_desc, temporal_type_desc INTO ##Tabela2 FROM dirceuresende.sys.tables EXEC dbo.stpExporta_Tabela_HTML_Output @Ds_Tabela = '##Tabela2', -- varchar(max) @Ds_Saida = @HTML2 OUTPUT, -- varchar(max) @Fl_Aplica_Estilo_Padrao = 0 -- Utilizar 0 se for utilizar a Procedure mais de 1x SET @HTML = ' <h2>Lista de Usuários do Sistema</h2> Veja a lista dos usuários permitidos no sistema:<br/><br/>' + ISNULL(@HTML1, '') + ' <br/><br/> <h2>Lista de dos Objetos no Banco</h2> Veja a lista dos objetos que existem nesse banco:<br/><br/>' + ISNULL(@HTML2, '') + ' <br/><br/> Em caso de dúvidas, favor entrar em contato<br/><br/> Atenciosamente,<br/> <img src="https://www.sqlsaturday.com/images/speakers/6984-e5594a7e.jpg" /><br/> DBA'; -- Envia o e-mail EXEC msdb.dbo.sp_send_dbmail @profile_name = 'ProfileEnvioEmail', -- sysname @subject = N'Teste', -- nvarchar(255) @body = @HTML, -- nvarchar(max) @body_format = 'html' |

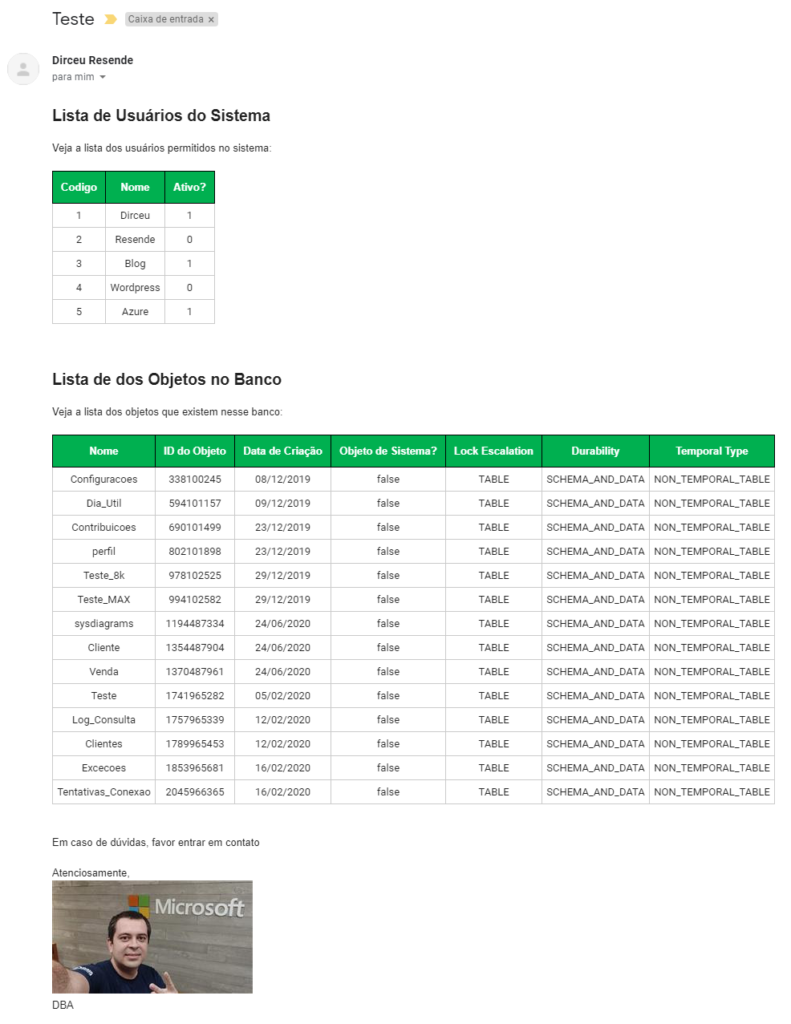

Result:
And that's it folks!
I hope you enjoyed this tip and see you in the next post.
