Speak guys!
In this article I would like to share with you how to identify and collect information from time consuming queries using Extended Events (XE), in a very similar article to SQL Server - How to identify and collect time consuming query information using Trace (SQL Server Profiler), which uses the technology of Profiler (Trace).
What motivated me to write this article was that Profiler is a feature that has been marked as deprecated for a long time, it is a much older technology and the code is not friendly or readable. So, thinking about bringing you a more modern and intuitive solution, I decided to share this solution using XE.

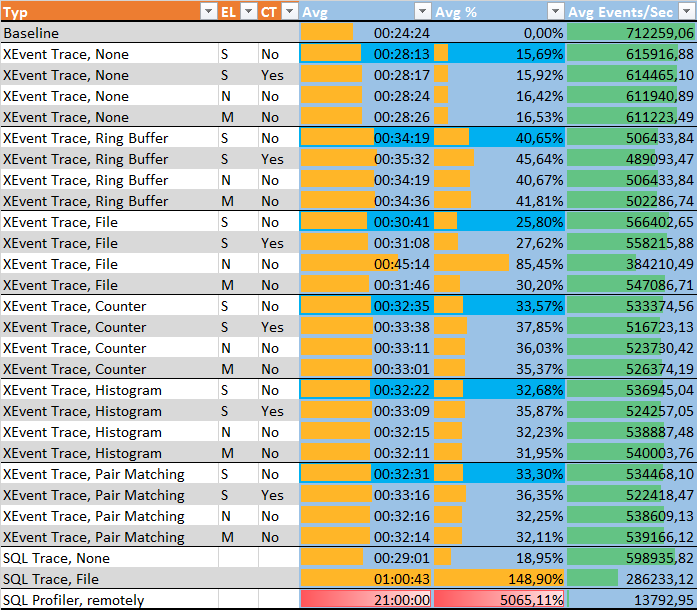

If all of the above is not enough for you to trade your Profiler for XE, please be aware that XE's overhead is MUCH lower than using Trace events, as we can find in the articles below:
- Comparing Extended Events vs SQL Trace - or why SQL Trace & Profiler are just a thing of the past
- Performance overhead of tracing with Extended Event targets vs SQL Trace under CPU Load
- Measuring “Observer Overhead” of SQL Trace vs. Extended Events
Step 1 - Enable the Extended Event on the Server (SQL 2012+)
In order to start monitoring the commands that are executed on the instance, let's enable Extended Event by capturing events from sqlserver.sql_batch_completed. It could even be sqlserver.sp_statement_completed and / or sqlserver.sql_statement_completed, but it would capture only portions of an ad-hoc or SP query that have timed out. In this article, my goal is to capture the entire SP or batch that has timed out and then analyze to see which statement is taking the longest.
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 |
-- Apaga a sessão, caso ela já exista IF ((SELECT COUNT(*) FROM sys.server_event_sessions WHERE [name] = 'Query Lenta') > 0) DROP EVENT SESSION [Query Lenta] ON SERVER GO -- Cria o Extended Event no servidor, configurado para iniciar automaticamente quando o serviço do SQL é iniciado CREATE EVENT SESSION [Query Lenta] ON SERVER ADD EVENT sqlserver.sql_batch_completed ( ACTION ( sqlserver.session_id, sqlserver.client_app_name, sqlserver.client_hostname, sqlserver.database_name, sqlserver.username, sqlserver.session_nt_username, sqlserver.session_server_principal_name, sqlserver.sql_text ) WHERE duration > (3000000) -- 3 segundos ) ADD TARGET package0.event_file ( SET filename=N'C:\Traces\Query Lenta', max_file_size=(10), max_rollover_files=(10) ) WITH (STARTUP_STATE=ON) GO -- Ativa o Extended Event ALTER EVENT SESSION [Query Lenta] ON SERVER STATE = START GO |
For this monitoring, I defined that the time limit to capture the queries is 3 seconds. Reached or passed that time, the consultation is logged in our monitoring. The destination of the collected data I set to “C: \ Traces \ Query Lenta”, with a maximum size of 10 MB of data and a maximum of 10 files. As the rollout is configured, the files will always keep the most recent data, so we don't have to worry about purging the data or with the files growing too much.
Step 1 - Enable the Extended Event on the Server (SQL 2008)
If you are still using SQL Server 2008 in your environment (it's past time to migrate huh .. support ends July / 2019), you will notice that when you try to create the Extended Events described above, you will get the error message below:
The event name, “sqlserver.sql_batch_completed”, is invalid, or the object could not be found
This is because in SQL Server 2008, this event was not yet supported, as we can query using the query below:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 |
SELECT p.[name] package_name, o.[name] event_name, c.[name] event_field, c.[type_name] field_type, c.column_type column_type FROM sys.dm_xe_objects o JOIN sys.dm_xe_packages p ON o.package_guid = p.[guid] JOIN sys.dm_xe_object_columns c ON o.[name] = c.[object_name] WHERE o.object_type = 'event' AND o.[name] LIKE '%_completed%' ORDER BY package_name, event_name |

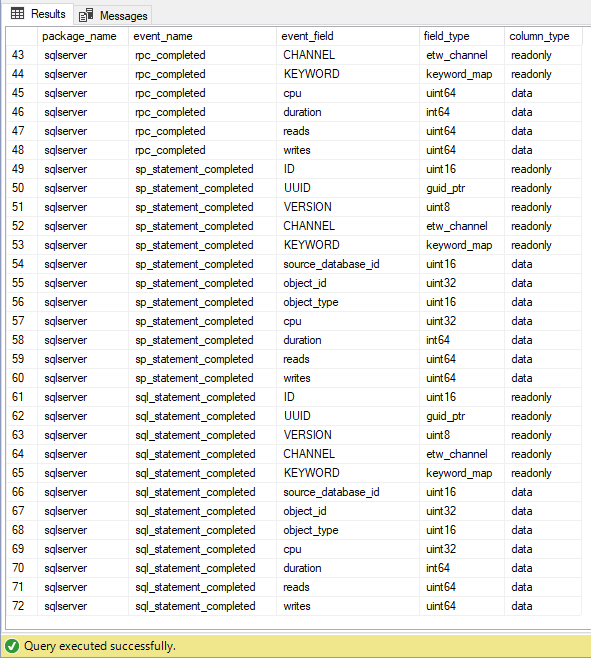

Result:
That is, if we want to implement a slow query monitoring solution using Extended Events, we will have to look for other event types, and for this case, I will use the sp_statement_completed and sql_statement_completed methods:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 |
-- Apaga a sessão, caso ela já exista IF ((SELECT COUNT(*) FROM sys.server_event_sessions WHERE [name] = 'Query Lenta') > 0) DROP EVENT SESSION [Query Lenta] ON SERVER GO -- Cria o Extended Event no servidor, configurado para iniciar automaticamente quando o serviço do SQL é iniciado CREATE EVENT SESSION [Query Lenta] ON SERVER ADD EVENT sqlserver.sp_statement_completed ( ACTION ( sqlserver.session_id, sqlserver.client_app_name, sqlserver.client_hostname, sqlserver.username, sqlserver.database_id, sqlserver.session_nt_username, sqlserver.sql_text ) WHERE duration > (3000000) -- 3 segundos ), ADD EVENT sqlserver.sql_statement_completed ( ACTION ( sqlserver.session_id, sqlserver.client_app_name, sqlserver.client_hostname, sqlserver.username, sqlserver.database_id, sqlserver.session_nt_username, sqlserver.sql_text ) WHERE duration > (3000000) -- 3 segundos ) ADD TARGET package0.asynchronous_file_target ( SET filename=N'C:\Traces\Query Lenta 2008.xel', max_file_size=(100), max_rollover_files=(1) ) WITH (STARTUP_STATE=ON) GO -- Ativa o Extended Event ALTER EVENT SESSION [Query Lenta] ON SERVER STATE = START GO |
Unlike the method I used earlier (sql_batch_completed), which measures the run time of the entire batch, these 2 event types will capture query or Stored Procedures that time out, ie if you have a Stored Procedure that It takes 40s to execute and neither statement exceeds 3 seconds, this SP will not fall into monitoring.
Step 2 - Create the Data History Table
To store the data collected by our monitoring, we will create a physical table that we will use to enter the data and later to query the collected data whenever necessary.
SQL Server 2012 +
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 |
CREATE TABLE dbo.Historico_Query_Lenta ( [Dt_Evento] DATETIME, [session_id] INT, [database_name] VARCHAR(128), [username] VARCHAR(128), [session_server_principal_name] VARCHAR(128), [session_nt_username] VARCHAR(128), [client_hostname] VARCHAR(128), [client_app_name] VARCHAR(128), [duration] DECIMAL(18, 2), [cpu_time] DECIMAL(18, 2), [logical_reads] BIGINT, [physical_reads] BIGINT, [writes] BIGINT, [row_count] BIGINT, [sql_text] XML, [batch_text] XML, [result] VARCHAR(100) ) WITH(DATA_COMPRESSION=PAGE) GO CREATE CLUSTERED INDEX SK01_Historico_Query_Lenta ON dbo.Historico_Query_Lenta (Dt_Evento) WITH(DATA_COMPRESSION=PAGE) GO |
SQL Server 2008:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 |
CREATE TABLE dbo.Historico_Query_Lenta ( Dt_Evento DATETIME, Tp_Evento VARCHAR(50), session_id INT, database_id INT, [database_name] VARCHAR(128), [object_id] INT, [object_name] VARCHAR(128), username VARCHAR(128), session_nt_username VARCHAR(128), client_hostname VARCHAR(128), client_app_name VARCHAR(128), duration NUMERIC(18, 2), cpu_time NUMERIC(18, 2), reads BIGINT, writes BIGINT, sql_text VARCHAR(MAX) ) WITH (DATA_COMPRESSION = PAGE) GO CREATE CLUSTERED INDEX [SK01_Historico_Query_Lenta] ON [dbo].[Historico_Query_Lenta] ([Dt_Evento]) WITH (DATA_COMPRESSION = PAGE) GO |
Step 3 - Create the Stored Procedure to Capture the Data
Now that we are already monitoring queries, we need to read the collected data and store it in a physical table for queries, as I set the maximum size of very small files (10 MB) so that queries are always fast. Depending on the amount of heavy queries in your environment, you can increase or decrease the maximum size according to your environment.
To capture the data in SQL Server 2012 +, let's use the Stored Procedure below:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 |
USE [dirceuresende] GO IF (OBJECT_ID('dbo.stpCarga_Query_Lenta') IS NULL) EXEC('CREATE PROCEDURE dbo.stpCarga_Query_Lenta AS SELECT 1') GO ALTER PROCEDURE dbo.stpCarga_Query_Lenta AS BEGIN DECLARE @TimeZone INT = DATEDIFF(HOUR, GETUTCDATE(), GETDATE()), @Dt_Ultimo_Registro DATETIME = ISNULL((SELECT MAX(Dt_Evento) FROM dbo.Historico_Query_Lenta), '1900-01-01') IF (OBJECT_ID('tempdb..#Eventos') IS NOT NULL) DROP TABLE #Eventos ;WITH CTE AS ( SELECT CONVERT(XML, event_data) AS event_data FROM sys.fn_xe_file_target_read_file(N'C:\Traces\Query Lenta*.xel', NULL, NULL, NULL) ) SELECT DATEADD(HOUR, @TimeZone, CTE.event_data.value('(//event/@timestamp)[1]', 'datetime')) AS Dt_Evento, CTE.event_data INTO #Eventos FROM CTE WHERE DATEADD(HOUR, @TimeZone, CTE.event_data.value('(//event/@timestamp)[1]', 'datetime')) > @Dt_Ultimo_Registro INSERT INTO dbo.Historico_Query_Lenta SELECT A.Dt_Evento, xed.event_data.value('(action[@name="session_id"]/value)[1]', 'int') AS session_id, xed.event_data.value('(action[@name="database_name"]/value)[1]', 'varchar(128)') AS [database_name], xed.event_data.value('(action[@name="username"]/value)[1]', 'varchar(128)') AS username, xed.event_data.value('(action[@name="session_server_principal_name"]/value)[1]', 'varchar(128)') AS session_server_principal_name, xed.event_data.value('(action[@name="session_nt_username"]/value)[1]', 'varchar(128)') AS [session_nt_username], xed.event_data.value('(action[@name="client_hostname"]/value)[1]', 'varchar(128)') AS [client_hostname], xed.event_data.value('(action[@name="client_app_name"]/value)[1]', 'varchar(128)') AS [client_app_name], CAST(xed.event_data.value('(//data[@name="duration"]/value)[1]', 'bigint') / 1000000.0 AS NUMERIC(18, 2)) AS duration, CAST(xed.event_data.value('(//data[@name="cpu_time"]/value)[1]', 'bigint') / 1000000.0 AS NUMERIC(18, 2)) AS cpu_time, xed.event_data.value('(//data[@name="logical_reads"]/value)[1]', 'bigint') AS logical_reads, xed.event_data.value('(//data[@name="physical_reads"]/value)[1]', 'bigint') AS physical_reads, xed.event_data.value('(//data[@name="writes"]/value)[1]', 'bigint') AS writes, xed.event_data.value('(//data[@name="row_count"]/value)[1]', 'bigint') AS row_count, TRY_CAST(xed.event_data.value('(//action[@name="sql_text"]/value)[1]', 'varchar(max)') AS XML) AS sql_text, TRY_CAST(xed.event_data.value('(//data[@name="batch_text"]/value)[1]', 'varchar(max)') AS XML) AS batch_text, xed.event_data.value('(//data[@name="result"]/text)[1]', 'varchar(100)') AS result FROM #Eventos A CROSS APPLY A.event_data.nodes('//event') AS xed (event_data) END |
If you are using SQL Server 2008, I have prepared a Stored Procedure for you too 🙂
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 |
IF (OBJECT_ID('dbo.stpCarga_Query_Lenta') IS NULL) EXEC('CREATE PROCEDURE dbo.stpCarga_Query_Lenta AS SELECT 1') GO ALTER PROCEDURE dbo.stpCarga_Query_Lenta AS BEGIN DECLARE @TimeZone INT = DATEDIFF(HOUR, GETUTCDATE(), GETDATE()), @Dt_Ultimo_Registro DATETIME = ISNULL((SELECT MAX(Dt_Evento) FROM dbo.Historico_Query_Lenta), '1900-01-01') IF (OBJECT_ID('tempdb..#Eventos') IS NOT NULL) DROP TABLE #Eventos ;WITH CTE AS ( SELECT CONVERT(XML, event_data) AS event_data FROM sys.fn_xe_file_target_read_file(N'C:\Traces\Query Lenta 2008*.xel', N'C:\Traces\Query Lenta 2008*.xem', NULL, NULL) ) SELECT DATEADD(HOUR, @TimeZone, CTE.event_data.value('(//event/@timestamp)[1]', 'datetime')) AS Dt_Evento, CTE.event_data INTO #Eventos FROM CTE WHERE DATEADD(HOUR, @TimeZone, CTE.event_data.value('(//event/@timestamp)[1]', 'datetime')) > @Dt_Ultimo_Registro INSERT INTO dbo.Historico_Query_Lenta ( Dt_Evento, Tp_Evento, session_id, database_id, [database_name], [object_id], [object_name], username, session_nt_username, client_hostname, client_app_name, duration, cpu_time, reads, writes, sql_text ) SELECT A.Dt_Evento, xed.event_data.value('@name[1]', 'varchar(128)') AS event_name, xed.event_data.value('(action[@name="session_id"]/value)[1]', 'int') AS session_id, xed.event_data.value('(action[@name="database_id"]/value)[1]', 'int') AS [database_id], DB_NAME(xed.event_data.value('(action[@name="database_id"]/value)[1]', 'int')) AS [database_name], xed.event_data.value('(data[@name="object_id"]/value)[1]', 'int') AS [object_id], OBJECT_NAME(xed.event_data.value('(data[@name="object_id"]/value)[1]', 'int'), xed.event_data.value('(action[@name="database_id"]/value)[1]', 'int')) AS [object_name], xed.event_data.value('(action[@name="username"]/value)[1]', 'varchar(128)') AS username, xed.event_data.value('(action[@name="session_nt_username"]/value)[1]', 'varchar(128)') AS [session_nt_username], xed.event_data.value('(action[@name="client_hostname"]/value)[1]', 'varchar(128)') AS [client_hostname], xed.event_data.value('(action[@name="client_app_name"]/value)[1]', 'varchar(128)') AS [client_app_name], CAST(xed.event_data.value('(//data[@name="duration"]/value)[1]', 'bigint') / 1000000.0 AS NUMERIC(18, 2)) AS duration, CAST(xed.event_data.value('(//data[@name="cpu"]/value)[1]', 'bigint') / 1000000.0 AS NUMERIC(18, 2)) AS cpu_time, xed.event_data.value('(//data[@name="reads"]/value)[1]', 'bigint') AS reads, xed.event_data.value('(//data[@name="writes"]/value)[1]', 'bigint') AS writes, xed.event_data.value('(//action[@name="sql_text"]/value)[1]', 'varchar(max)') AS sql_text FROM #Eventos A CROSS APPLY A.event_data.nodes('//event') AS xed (event_data) END |
Step 4 - Create a job in SQL Agent to automate data collection
In order for the collected data to always be written to the table we created, you must now create a Job in SQL Server Agent to automate the execution of the Stored Procedure created in Item 3, according to how often you need the data written.
My suggestion is to start with executions every 10 minutes and adjust this time as needed.
Below, I will share a sample code for Job creation, but I believe that creating from the SQL Server Management Studio (SSMS) interface is much more practical and intuitive, right?
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 |
USE [msdb] GO DECLARE @jobId BINARY(16) EXEC msdb.dbo.sp_add_job @job_name=N'DBA - Coleta de Query Lenta', @enabled=1, @notify_level_eventlog=0, @notify_level_email=2, @notify_level_page=2, @delete_level=0, @category_name=N'Database Maintenance', @owner_login_name=N'dirceu.resende', @job_id = @jobId OUTPUT select @jobId GO EXEC msdb.dbo.sp_add_jobserver @job_name=N'DBA - Coleta de Query Lenta', @server_name = N'SQLSERVER\SQL2017' GO USE [msdb] GO EXEC msdb.dbo.sp_add_jobstep @job_name=N'DBA - Coleta de Query Lenta', @step_name=N'Executa SP', @step_id=1, @cmdexec_success_code=0, @on_success_action=1, @on_fail_action=2, @retry_attempts=0, @retry_interval=0, @os_run_priority=0, @subsystem=N'TSQL', @command=N'EXEC dbo.stpCarga_Query_Lenta', @database_name=N'dirceuresende', @flags=8 GO USE [msdb] GO EXEC msdb.dbo.sp_update_job @job_name=N'DBA - Coleta de Query Lenta', @enabled=1, @start_step_id=1, @notify_level_eventlog=0, @notify_level_email=2, @notify_level_page=2, @delete_level=0, @description=N'', @category_name=N'Database Maintenance', @owner_login_name=N'dirceu.resende', @notify_email_operator_name=N'', @notify_page_operator_name=N'' GO USE [msdb] GO DECLARE @schedule_id int EXEC msdb.dbo.sp_add_jobschedule @job_name=N'DBA - Coleta de Query Lenta', @name=N'A cada 10 minutos', @enabled=1, @freq_type=4, @freq_interval=1, @freq_subday_type=4, @freq_subday_interval=10, @freq_relative_interval=0, @freq_recurrence_factor=1, @active_start_date=20190218, @active_end_date=99991231, @active_start_time=112, @active_end_time=235959, @schedule_id = @schedule_id OUTPUT select @schedule_id GO |
And finally, now that our monitoring is enabled and we already have a job to automate the collection of this data and write it to a database table, we can query the data in that table whenever we need to identify slow queries in our environment.

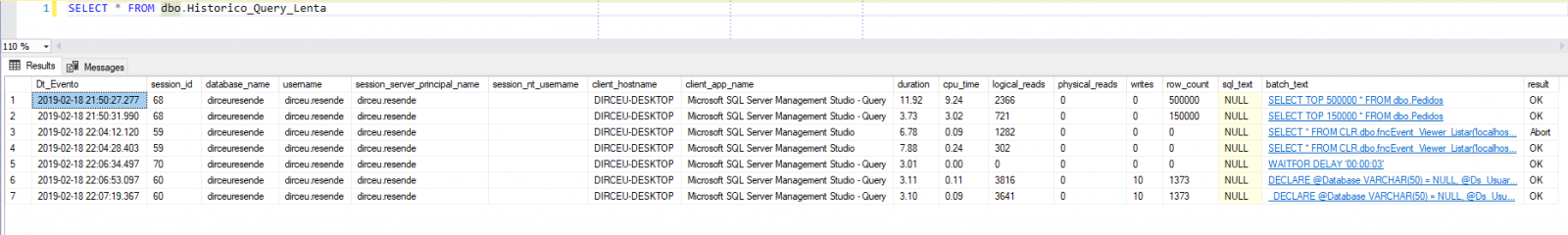

Execution example:
Note that the last column (Result) tells us if the command was executed successfully or if it was interrupted. Very cool, right?
I hope you enjoyed this tip, a big hug and see you in the next article.
