In this post, I'd like to share with you a way to create error and exception tracking in your database using Extended Events (XE), allowing you to capture and generate a history of errors that occur in your SQL Server instance, These errors may have been generated by applications, Mobile applications, Management Studio queries, Windows services, SQL Agent Jobs, whatever the source of the errors, you can catch them and handle them or inform them to development team if it is their responsibility.
My motivation for creating this type of monitoring was to identify system permissions errors and application user login errors where I work since we changed that user's password and needed tools to detect if any legacy system or service (which do not have application side logs) were in error due to this change.
Using this XE session, you will be able to catch almost any error or exception that occurs in your database, such as:
- Permission errors on objects
- Syntax errors
- Non-existent objects
- Login errors
- Network errors
- Arithmetic and mathematical errors
- Warnings like “The definition of object 'xxx' has changed since it was compiled.”
- Occurrence of deadlocks
- Violation of constraints (Check, Foreign Key, Primary Key, Unique Key)
With this, with just a few commands, you can get a very detailed report of the errors that occur in your instance, especially useful for the development team to analyze application errors or the DBA team to analyze errors in SQL Agent jobs.
How to create error tracking with XE
To create our bug tracking, let's use SQL Server's Extended Events (XE) feature. You can create it using the commands below or using the SSMS interface as shown in the post. SQL Server - How to generate a deadlock history for failure analysis in routines.
The event we want to monitor is the error_reported.
Step by step to create XE through SSMS interface
-
- We do not want to use a template, but build a new template as needed.
-
- Select the event you want to monitor. In this case, we want to monitor the “error_reported” event
-
- Select the columns you want returned in the XE session
-
- Filters to select events. Here we have no option to filter by the severity field, so we will have to create this filter manually.
-
- Settings where events will be stored on server, maximum size, rollout, etc.
-
- Summary with our session settings
-
- This is where we set the name of our event and if it will start automatically when the instance was started
Once you have configured your XE session, click on the "Script" button on the last screen instead of "Finish".
I recommend you do this, as the filter using the Severity column cannot be applied through the SSMS interface, just editing the script and monitoring alerts with severity less than 10 can end up generating a very large log volume because even alerts and warnings may end up being monitored (at your discretion).
The final script to create monitoring looked like this:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 |
-- Apaga a sessão, caso ela já exista IF ((SELECT COUNT(*) FROM sys.server_event_sessions WHERE [name] = 'Captura Erros do Sistema') > 0) DROP EVENT SESSION [Captura Erros do Sistema] ON SERVER GO CREATE EVENT SESSION [Captura Erros do Sistema] ON SERVER ADD EVENT sqlserver.error_reported ( ACTION(client_app_name,sqlserver.client_hostname,sqlserver.database_name,sqlserver.session_id,sqlserver.session_nt_username,sqlserver.sql_text) -- Adicionado manualmente, pois não é possível filtrar pela coluna "Severity" pela interface WHERE severity > 10 ) ADD TARGET package0.event_file(SET filename=N'C:\Traces\Captura Erros do Sistema',max_file_size=(3),max_rollover_files=(1)) WITH (STARTUP_STATE=ON) -- Será iniciado automaticamente com a instância GO -- Ativando a sessão (por padrão, ela é criada desativada) ALTER EVENT SESSION [Captura Erros do Sistema] ON SERVER STATE = START GO |
An important note: If you set a directory to store your XE events, as I did in the example (C: \ Traces \), you must create that directory manually. If you do not do this, an error message will be generated when you try to activate the session stating that this directory does not exist.
Viewing captured errors
Now that our monitoring has been created and is up and running, we need to create a routine to handle the Extended Events file and store the results in a table.
This makes it easy for other teams to be able to query this data without having to have higher privileges to use Extended Events functions, and makes it much easier to query for these errors, since the data is written in XML format, and this would require a knowledge of data handling in XML format and would end up weighing the instance a bit to fetch and filter certain values.
By creating the data handler, we can create indexes on columns to make data filtering easier and faster, as well as create a longer history of errors. In my case, I limited the file to only 3 MB, but as I copy the data to a table, even if the file is overwritten as a result of new events, I will still be able to query the old data quietly.
I don't recommend creating giant files to store your events so you don't have to create this routine. The larger your XE results XML file, the greater the bank's effort when you need to filter some information directly into XML. Keeping the file small, this effort will be minimal.
Data visualization script source code
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 |
IF (OBJECT_ID('dbo.Historico_Erros_Banco') IS NULL) BEGIN -- DROP TABLE dbo.Historico_Erros_Banco CREATE TABLE dbo.Historico_Erros_Banco ( Dt_Evento DATETIME, session_id INT, [database_name] VARCHAR(100), session_nt_username VARCHAR(100), client_hostname VARCHAR(100), client_app_name VARCHAR(100), [error_number] INT, severity INT, [state] INT, sql_text XML, [message] VARCHAR(MAX) ) CREATE CLUSTERED INDEX SK01_Historico_Erros ON dbo.Historico_Erros_Banco(Dt_Evento) END DECLARE @TimeZone INT = DATEDIFF(HOUR, GETUTCDATE(), GETDATE()) DECLARE @Dt_Ultimo_Evento DATETIME = ISNULL((SELECT MAX(Dt_Evento) FROM dbo.Historico_Erros_Banco WITH(NOLOCK)), '1990-01-01') IF (OBJECT_ID('tempdb..#Eventos') IS NOT NULL) DROP TABLE #Eventos ;WITH CTE AS ( SELECT CONVERT(XML, event_data) AS event_data FROM sys.fn_xe_file_target_read_file(N'C:\Traces\Captura Erros do Sistema*.xel', NULL, NULL, NULL) ) SELECT DATEADD(HOUR, @TimeZone, CTE.event_data.value('(//event/@timestamp)[1]', 'datetime')) AS Dt_Evento, CTE.event_data INTO #Eventos FROM CTE WHERE DATEADD(HOUR, @TimeZone, CTE.event_data.value('(//event/@timestamp)[1]', 'datetime')) > @Dt_Ultimo_Evento SET QUOTED_IDENTIFIER ON INSERT INTO dbo.Historico_Erros_Banco SELECT A.Dt_Evento, xed.event_data.value('(action[@name="session_id"]/value)[1]', 'int') AS [session_id], xed.event_data.value('(action[@name="database_name"]/value)[1]', 'varchar(100)') AS [database_name], xed.event_data.value('(action[@name="session_nt_username"]/value)[1]', 'varchar(100)') AS [session_nt_username], xed.event_data.value('(action[@name="client_hostname"]/value)[1]', 'varchar(100)') AS [client_hostname], xed.event_data.value('(action[@name="client_app_name"]/value)[1]', 'varchar(100)') AS [client_app_name], xed.event_data.value('(data[@name="error_number"]/value)[1]', 'int') AS [error_number], xed.event_data.value('(data[@name="severity"]/value)[1]', 'int') AS [severity], xed.event_data.value('(data[@name="state"]/value)[1]', 'int') AS [state], TRY_CAST(xed.event_data.value('(action[@name="sql_text"]/value)[1]', 'varchar(max)') AS XML) AS [sql_text], xed.event_data.value('(data[@name="message"]/value)[1]', 'varchar(max)') AS [message] FROM #Eventos A CROSS APPLY A.event_data.nodes('//event') AS xed (event_data) |

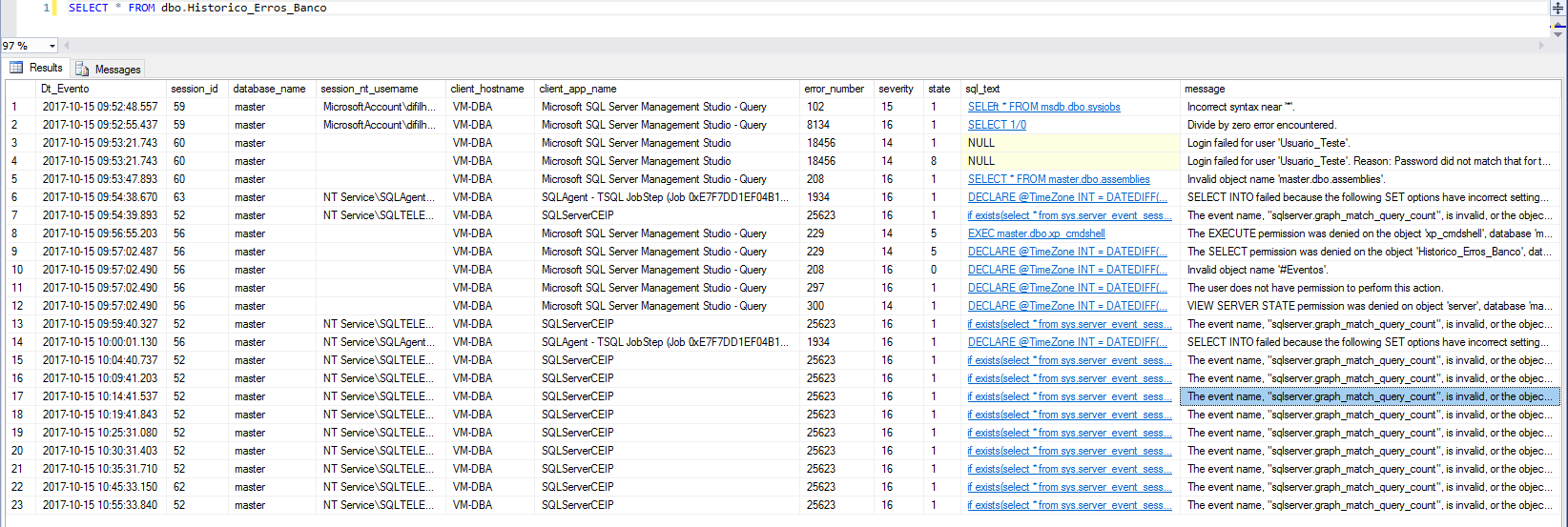

With this code, you can create an SP and schedule a SQL Agent job to perform this collection every "X" minutes in your instances. That way, any user with SELECT permission on this table can easily query the errors for their SQL Server instance.
What about SQL Server 2008?
If you are using (still) SQL Server 2008 / 2008 R2, you will not be able to create this XE session with the code above, as some features had not yet been implemented in this version of SQL Server, such as the client_app_name, sqlserver parameters. client_hostname, sqlserver.database_name. Also, when using the fn_xe_file_target_read_file function in 2008, you must enter the metadata file path as well, and target package0.event_file is not supported.
Due to these differences, I will share here with you a version of the above codes, adapted to work on SQL Server 2008.
Tracking Script:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 |
-- Apaga a sessão, caso ela já exista IF ((SELECT COUNT(*) FROM sys.dm_xe_sessions WHERE [name] = 'Captura Erros do Sistema') > 0) DROP EVENT SESSION [Captura Erros do Sistema] ON SERVER GO CREATE EVENT SESSION [Captura Erros do Sistema] ON SERVER ADD EVENT sqlserver.error_reported ( ACTION(sqlserver.client_hostname,sqlserver.session_id,sqlserver.session_nt_username,sqlserver.sql_text) -- Adicionado manualmente, pois não é possível filtrar pela coluna "Severity" pela interface WHERE severity > 10 ) ADD TARGET package0.asynchronous_file_target(SET filename=N'C:\Traces\Captura Erros do SQL2008.xel',max_file_size=(3),max_rollover_files=(1)) WITH (STARTUP_STATE=ON) -- Será iniciado automaticamente com a instância GO -- Ativando a sessão (por padrão, ela é criada desativada) ALTER EVENT SESSION [Captura Erros do Sistema] ON SERVER STATE = START GO |
Data Collection Script:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 |
IF (OBJECT_ID('dbo.Historico_Erros_Banco') IS NULL) BEGIN -- DROP TABLE dbo.Historico_Erros_Banco CREATE TABLE dbo.Historico_Erros_Banco ( Dt_Evento DATETIME, session_id INT, session_nt_username VARCHAR(100), client_hostname VARCHAR(100), [error_number] INT, severity INT, [state] INT, sql_text XML, [message] VARCHAR(MAX) ) CREATE CLUSTERED INDEX SK01_Historico_Erros ON dbo.Historico_Erros_Banco(Dt_Evento) END DECLARE @TimeZone INT = DATEDIFF(HOUR, GETUTCDATE(), GETDATE()) DECLARE @Dt_Ultimo_Evento DATETIME = ISNULL((SELECT MAX(Dt_Evento) FROM dbo.Historico_Erros_Banco WITH(NOLOCK)), '1990-01-01') IF (OBJECT_ID('tempdb..#Eventos') IS NOT NULL) DROP TABLE #Eventos ;WITH CTE AS ( SELECT CONVERT(XML, event_data) AS event_data FROM sys.fn_xe_file_target_read_file(N'C:\Traces\Captura Erros do SQL2008*.xel', 'C:\Traces\Captura Erros do SQL2008*.xem', NULL, NULL) ) SELECT DATEADD(HOUR, @TimeZone, CTE.event_data.value('(//event/@timestamp)[1]', 'datetime')) AS Dt_Evento, CTE.event_data INTO #Eventos FROM CTE WHERE DATEADD(HOUR, @TimeZone, CTE.event_data.value('(//event/@timestamp)[1]', 'datetime')) > @Dt_Ultimo_Evento SET QUOTED_IDENTIFIER ON INSERT INTO dbo.Historico_Erros_Banco SELECT A.Dt_Evento, xed.event_data.value('(action[@name="session_id"]/value)[1]', 'int') AS [session_id], xed.event_data.value('(action[@name="session_nt_username"]/value)[1]', 'varchar(100)') AS [session_nt_username], xed.event_data.value('(action[@name="client_hostname"]/value)[1]', 'varchar(100)') AS [client_hostname], xed.event_data.value('(data[@name="error_number"]/value)[1]', 'int') AS [error_number], xed.event_data.value('(data[@name="severity"]/value)[1]', 'int') AS [severity], xed.event_data.value('(data[@name="state"]/value)[1]', 'int') AS [state], CAST(xed.event_data.value('(action[@name="sql_text"]/value)[1]', 'varchar(max)') AS XML) AS [sql_text], xed.event_data.value('(data[@name="message"]/value)[1]', 'varchar(max)') AS [message] FROM #Eventos A CROSS APPLY A.event_data.nodes('//event') AS xed (event_data) |
